Our top priority is the quality of your plant.

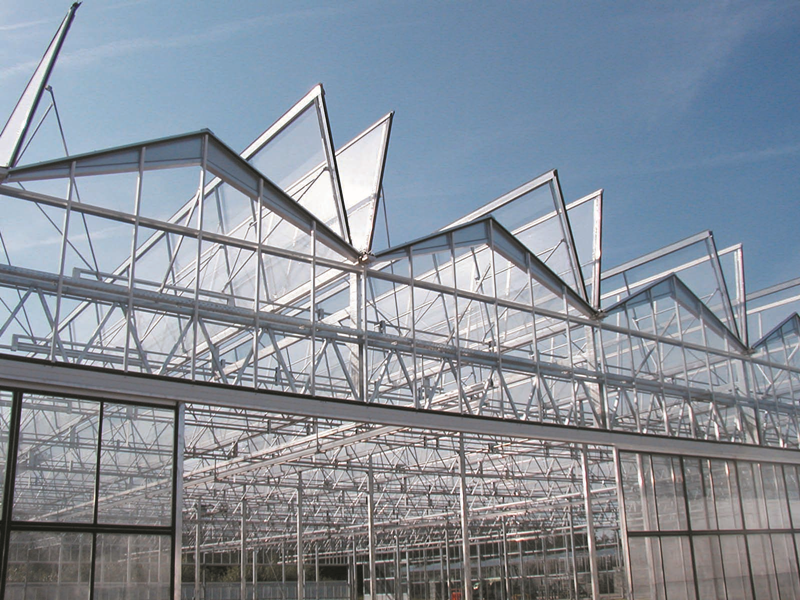

Greenhouse characteristics:
Two or three peaks in a span, plenty rain gutter, truss structure, good appearance, stable structure, strong hanging capacity, light transmittance can be as high as more than 90%, and does not decay over time, strong ability to resist wind and snow.
good ventilation, and can undertake external rainwater for irrigation, more excellent cooling performance in Summer. Because it is easier to be adjusted equally to the external temperature, it is especially suitable for seedling smelting plants use.
The main configuration:
Configurable within the internal and external sunshade, heat insulation, electrical windows, wet curtain fan cooling system and other facilities, other configuration can be added under user’s requirements (such as drip irrigation, spray system, heating system, intelligent control system, etc.).
Life span: More than 20 years.
General design parameters
Wind load resistance: 0.45 KN / ㎡
Snow load: 0.3 KN / ㎡
Greenhouse dead load: 15 kg / ㎡
Greenhouse biggest row rainfall: 140 mm/h
Electricity parameters: 220/380 v, 50 HZ
Ps: Can also be designed according to user’s geographical situation specific
Greenhouse specifications:
(Except the following specifications, also can be customized according to customer’s specific requirements)
|
Span(m)
|
Bay(m)
|
Eave height(m)
|
Ridge height(m)
|
Top height(m)
|
|
8/9.6/10.2/12
|
4/8
|
3.5-6
|
0.8-1higher than gutter
|
0.5m higher than ridge
|
