Our top priority is the quality of your plant.

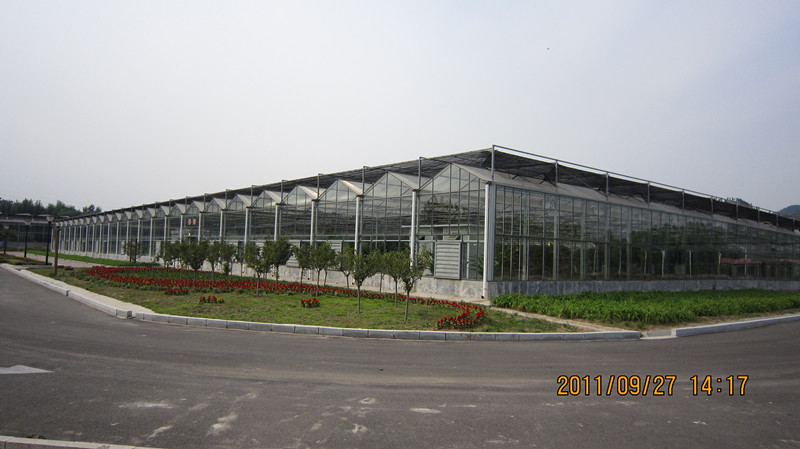

The greenhouse structure features
Main structure is all galvanized, no bare welding points, using galvanized bolt connection, the top is covered by hollow PC sheet, facade is covered by glass.
Two or three peaks in a span, features like small roofs, plenty rainy tank, large span roof and truss structure, strong drainage ability, and can be large multi-span.
Compartment can be easily set.
The location of ventilation set fly net, it can effectively prevent pests from entering the greenhouse to realize a real green space.
The main purpose
Widely used for large area economic crop cultivation, scientific research and teaching, ecological catering, tourism, etc.
The main configuration
Configurable within the internal and external sunshade, heat insulation,electrical windows, the wet curtain and fan cooling system and other facilities, other configuration is according to customer’s specific requirements (such as drip irrigation, spray system, heating system, intelligent control system, etc.).
Life span can be as long as 15 years.
General design parameters
Wind load resistance: 0.45 KN / ㎡
Snow load: 0.3 KN / ㎡
Greenhouse dead load: 15 kg / ㎡
Greenhouse drainability: 140 mm/h
Electricity parameters: 220/380 v, 50 HZ
Ps: can be designed under user’s geographical site conditions
Greenhouse specifications
(in addition to the following specifications, also can be customized according to customer’s specific requirements)
|
Span(m)
|
Bay(m)
|
Eave height(m)
|
Ridge height(m)
|
Top height(m)
|
|
8/9.6/10.8/12
|
4/8
|
3.5-6
|
0.8-1higher than gutter
|
0.5higher than ridge
|
